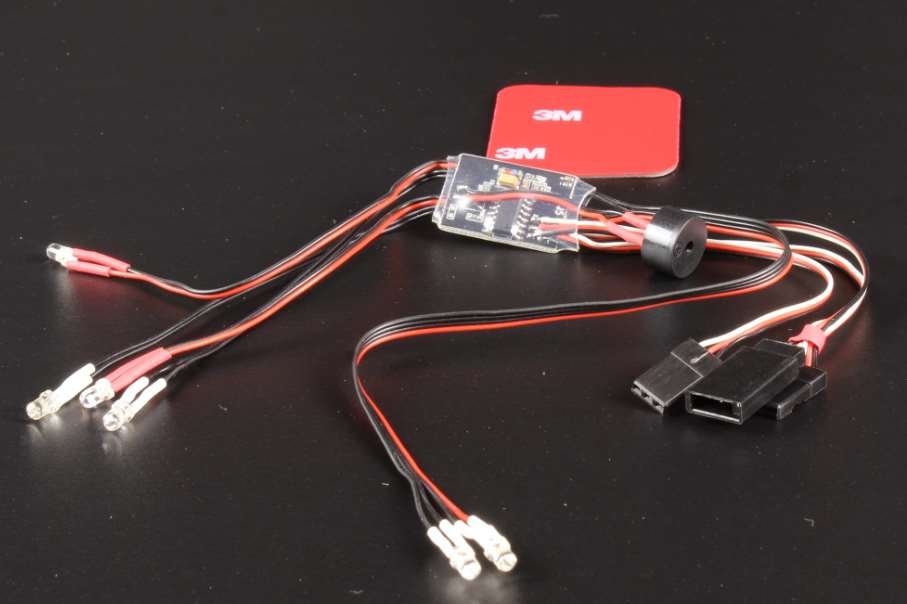

Skid steer loader lights and sound beep for reverse.
Connection method :
Servo Blue plug is the channel of steering light, connected to the receiver steering channel.
Servo Red plug is the channel of brake/reverse lamps, connected to the receiver throttle channel.
The original RX CH2 electronic speed control is then inserted into the identification interface.
(electronic speed control –ESC)
No logo color plug is the channel of headlamps, connected to the receiver CH3/CH4/CH5/CH6/CH7/CH8/CH9
Setting of dial switch on main board of lighting controller
“1”Brake and Reverse Lamps Reverse
“2” steering Reverse.
