Nooteboom 1:14 Scale 3 axle Special Trailer fits on Tamiya Trucks
Nooxion presents the new Nooteboom OSDS-48-03EB extendable semi low loader on a 1:14 scale during the 2020 Spielwarenmesse in Nürnberg. Nooxion has developed the new 1:14 trailer in collaboration and under license with Nooteboom Trailers. The aim was to recreate the trailer as truthfully as possible and to develop the same functions that the original Nooteboom semi low loader has. We succeeded!
Nooxion presents the 1:14 Nooteboom OSDS-48-03EB
Nooxion presents the new Nooteboom OSDS-48-03EB extendable semi low loader on a 1:14 scale during the 2020 Spielwarenmesse in Nürnberg. Nooxion has developed the new 1:14 trailer in collaboration and under license with Nooteboom Trailers. The aim was to recreate the trailer as truthfully as possible and to develop the same functions that the original Nooteboom semi low loader has. We succeeded! The trailer is made entirely of CNC machined aluminum and has 3 axles, an extendable loading floor. NOOXION
three-axle Nooteboom Licensed OSDS low-loader can simulate the telescopic length
of the real trailer to achieve real working conditions. The length of the
trailer can be quickly operated by the chassis column bolt. The maximum
extension size can reach 400mm. NOOXION

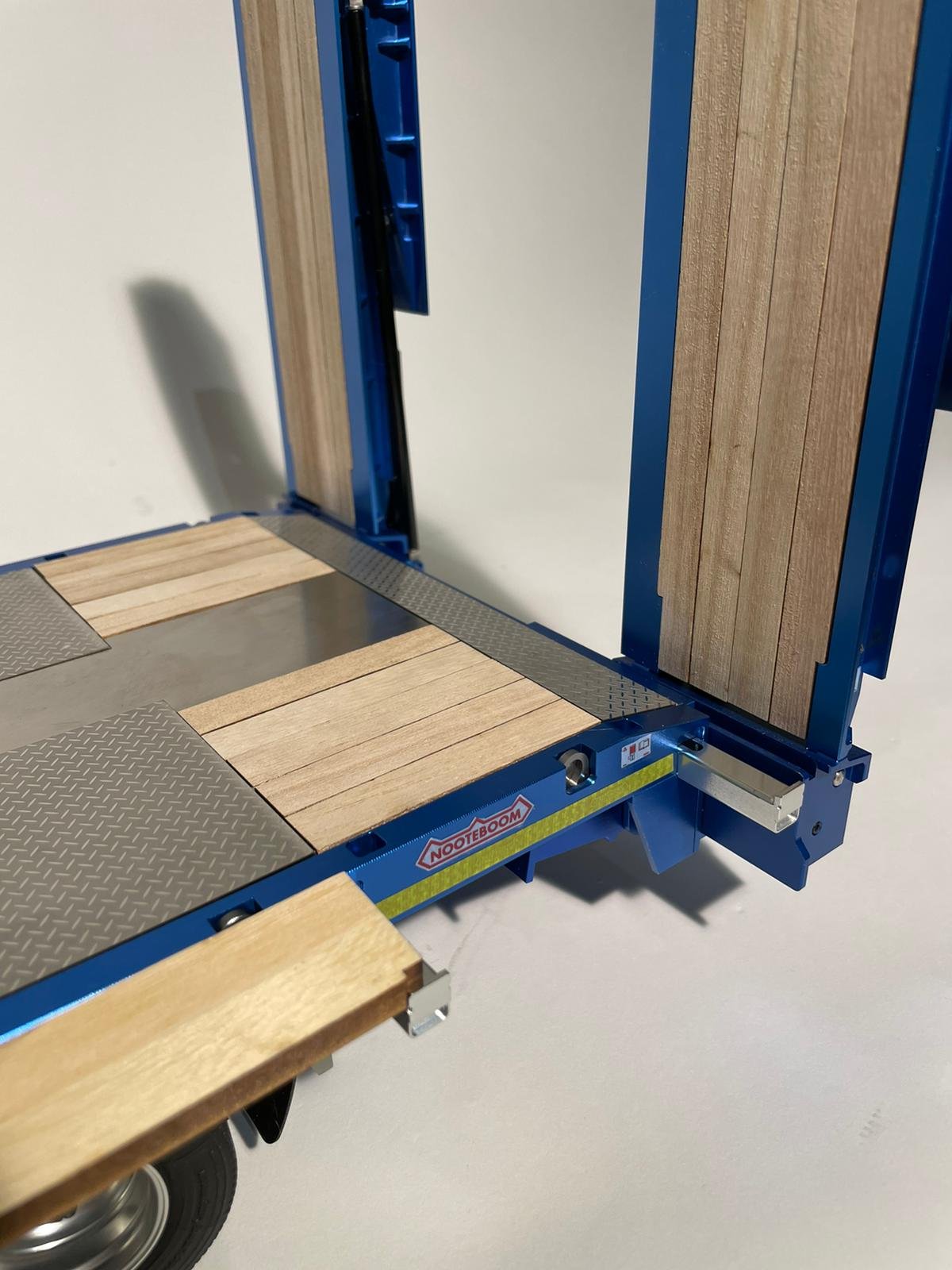

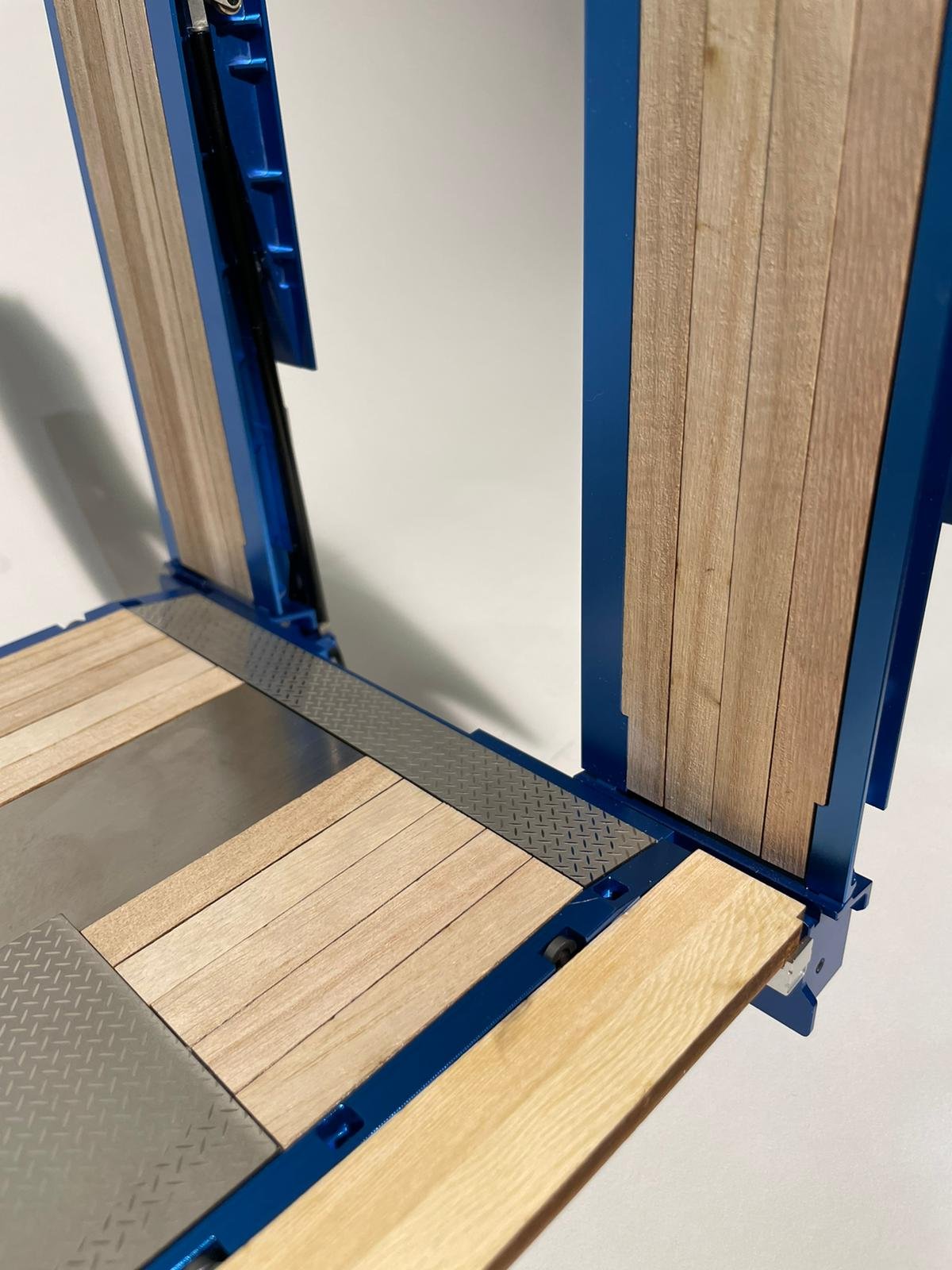

three-axle Nooteboom Licensed OSDS low-loader has the same structure as the
original trailer the same with adjustable trail ramps can be realized at the
rear of the trailer. These can be freely set to the desired width of
160mm-220mm, which can meet working conditions for loading wide loads possible. NOOXION

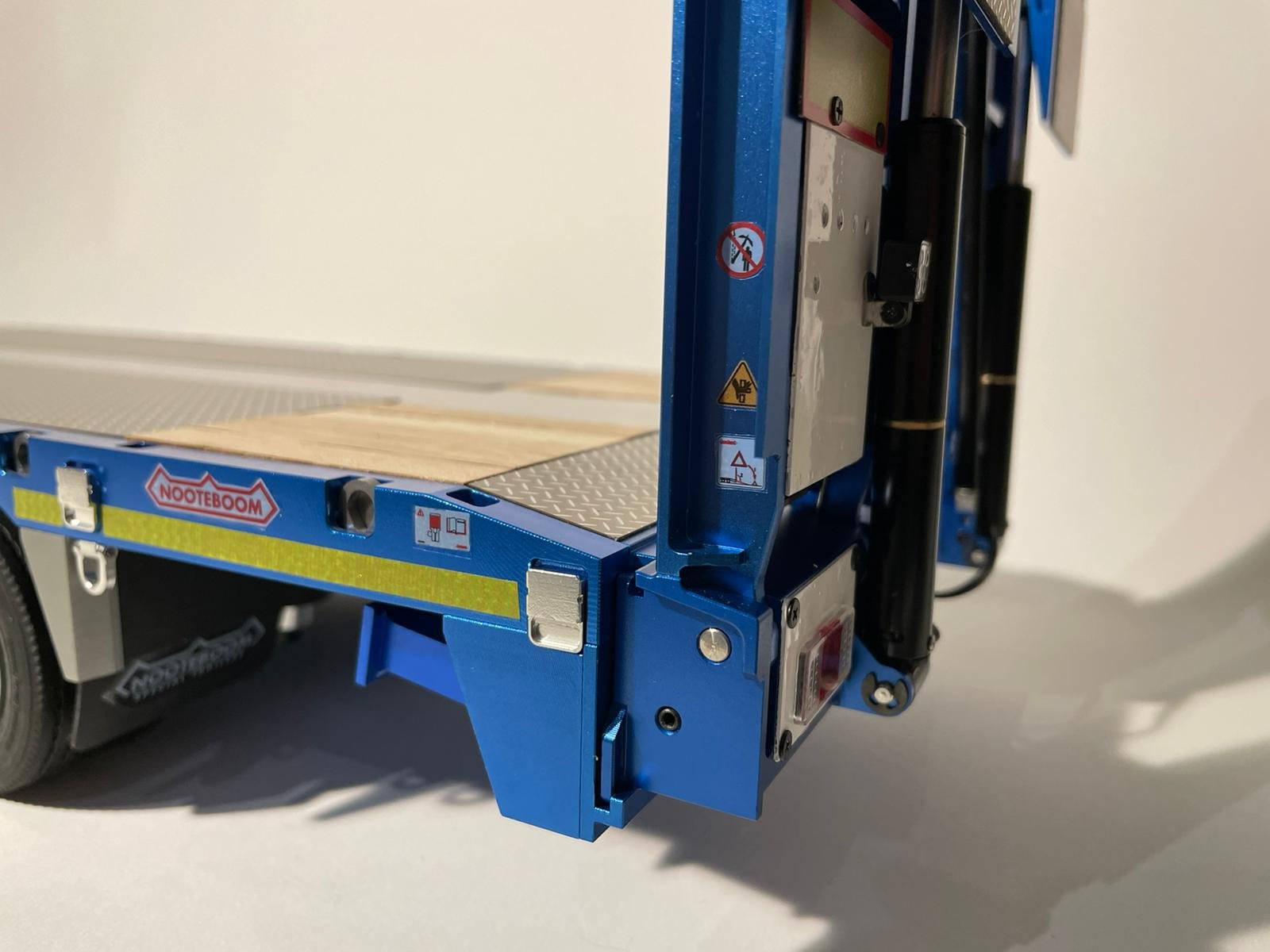

three-axle Nooteboom Licensed OSDS low-loader has the exclusive electronic

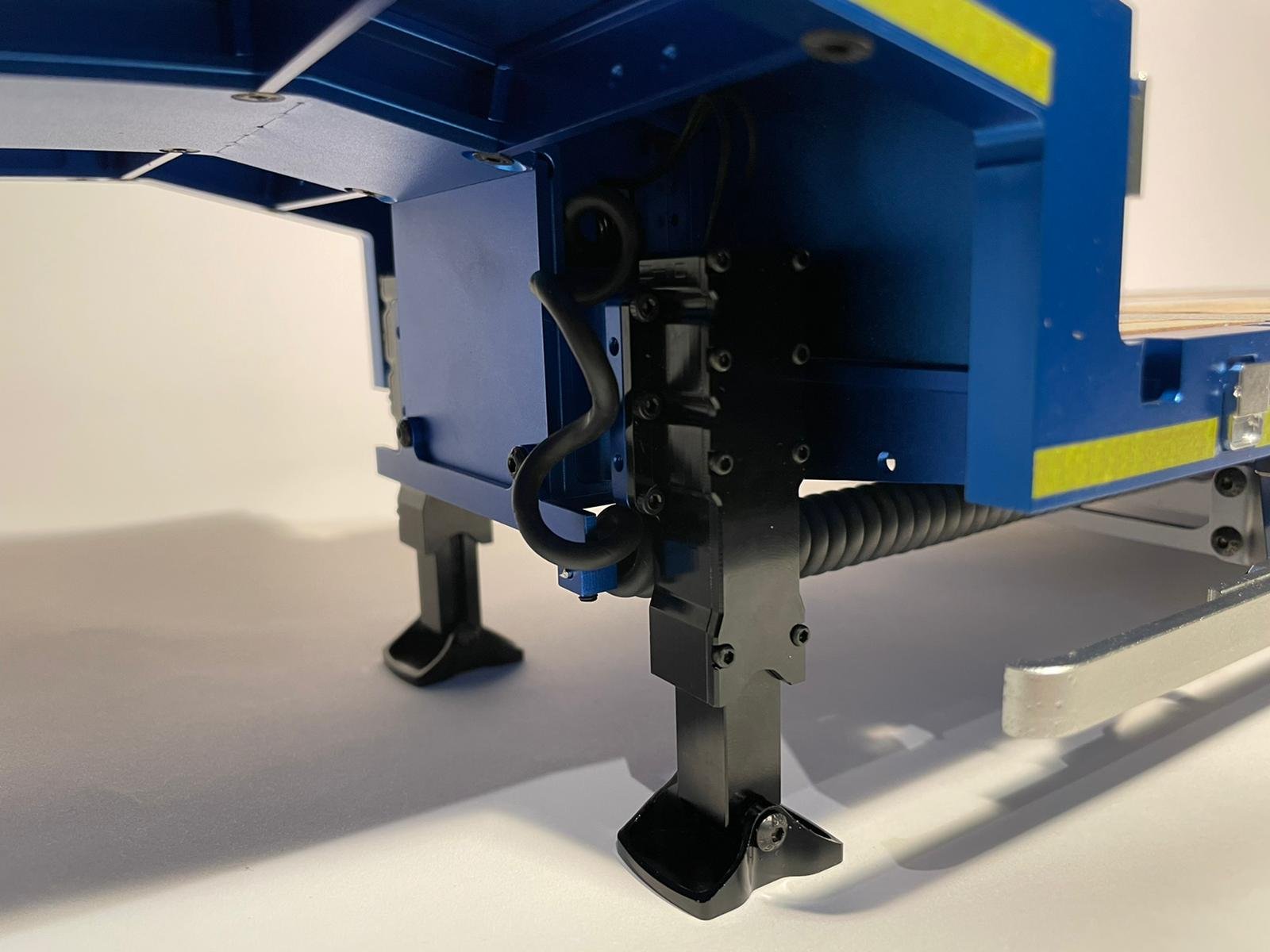

module unit of NOOXION, and can operate the front and rear foot lifting,
ramps lift, and reversing tail axle centering function. All can be operated on

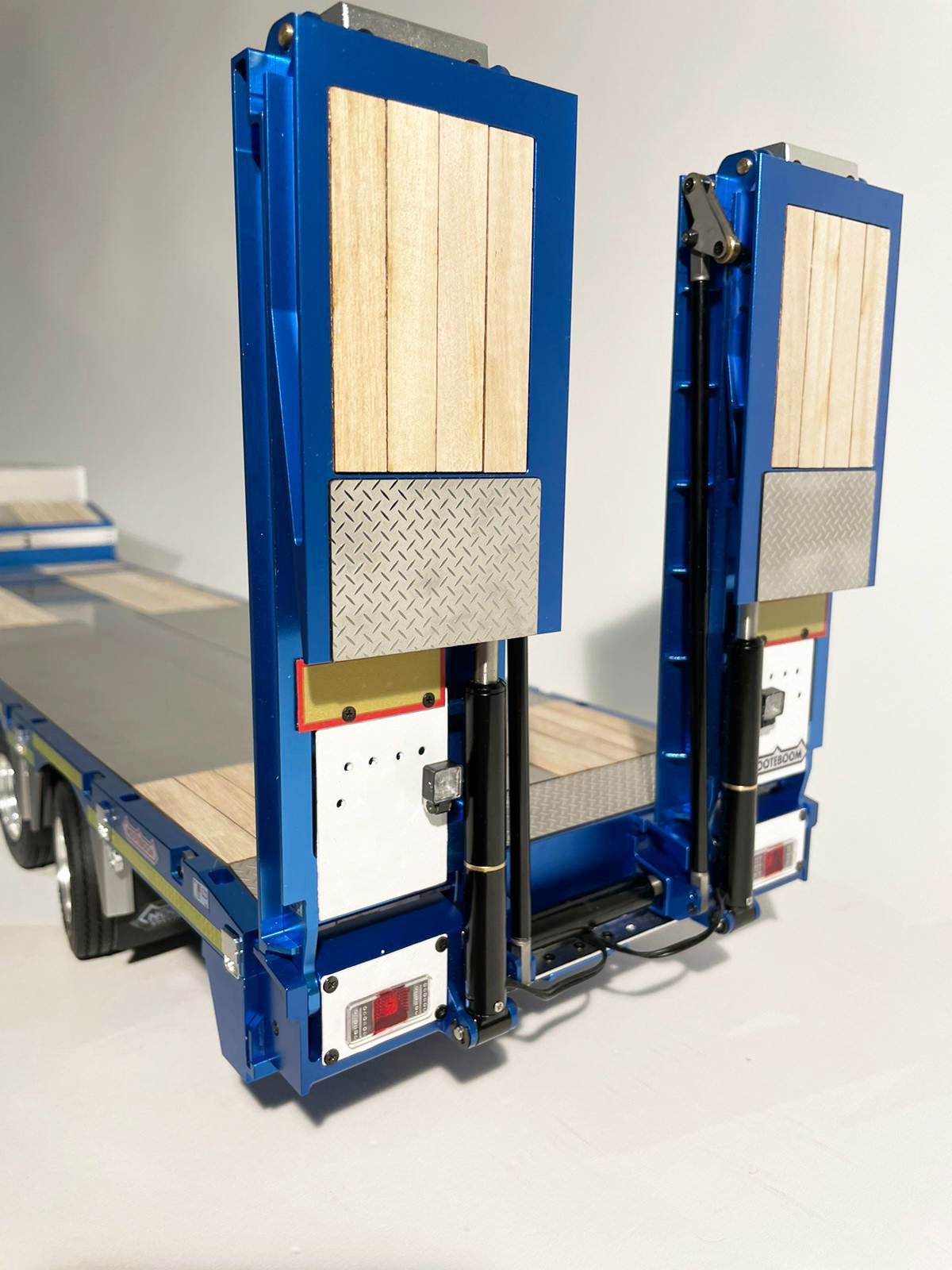

the control panel consistent with the real Nooteboom manual operation. NOOXION three-axle Nooteboom Licensed OSDS low-loader also has the special designed electronic control unit, which can simulate ramp movement of the real trailer. The ramps uses special designed pressure-sensitive electronic unit, which monitor the pressure during the operation. This pressure-sensitive unit will stop the ramps in an instant when external forces are applied to the ramps. This will maximize the safety of players and equipment. Self-tracking axle, extendible load floor widening, the support legs and ramps can be controlled remotely. The scale model is executed with automatic folding ramps, offering a low angle of inclination,just like the original Nooteboom OSDS, have air-suspended axles through the air bellows. This function can also be controlled remotely.

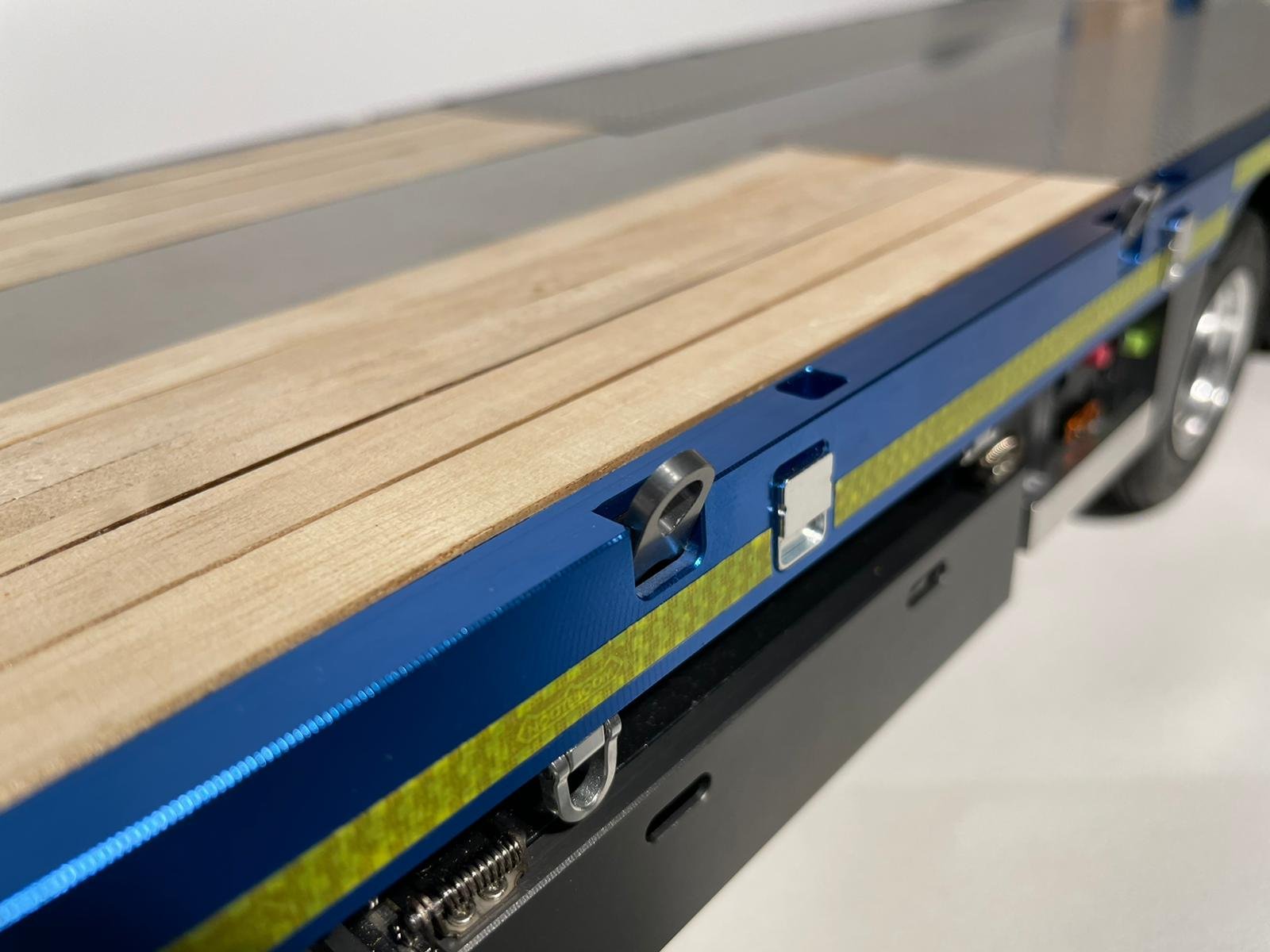

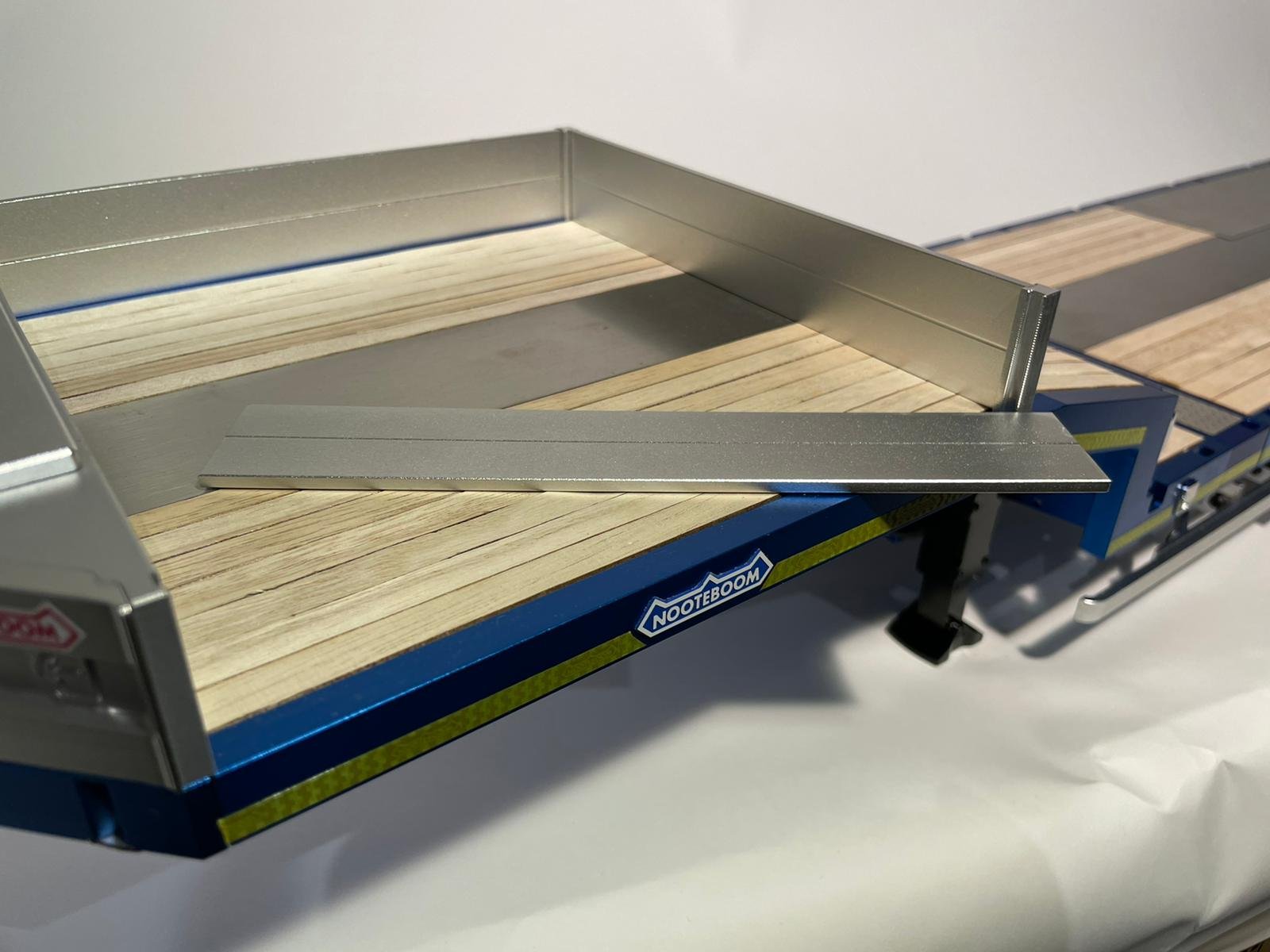

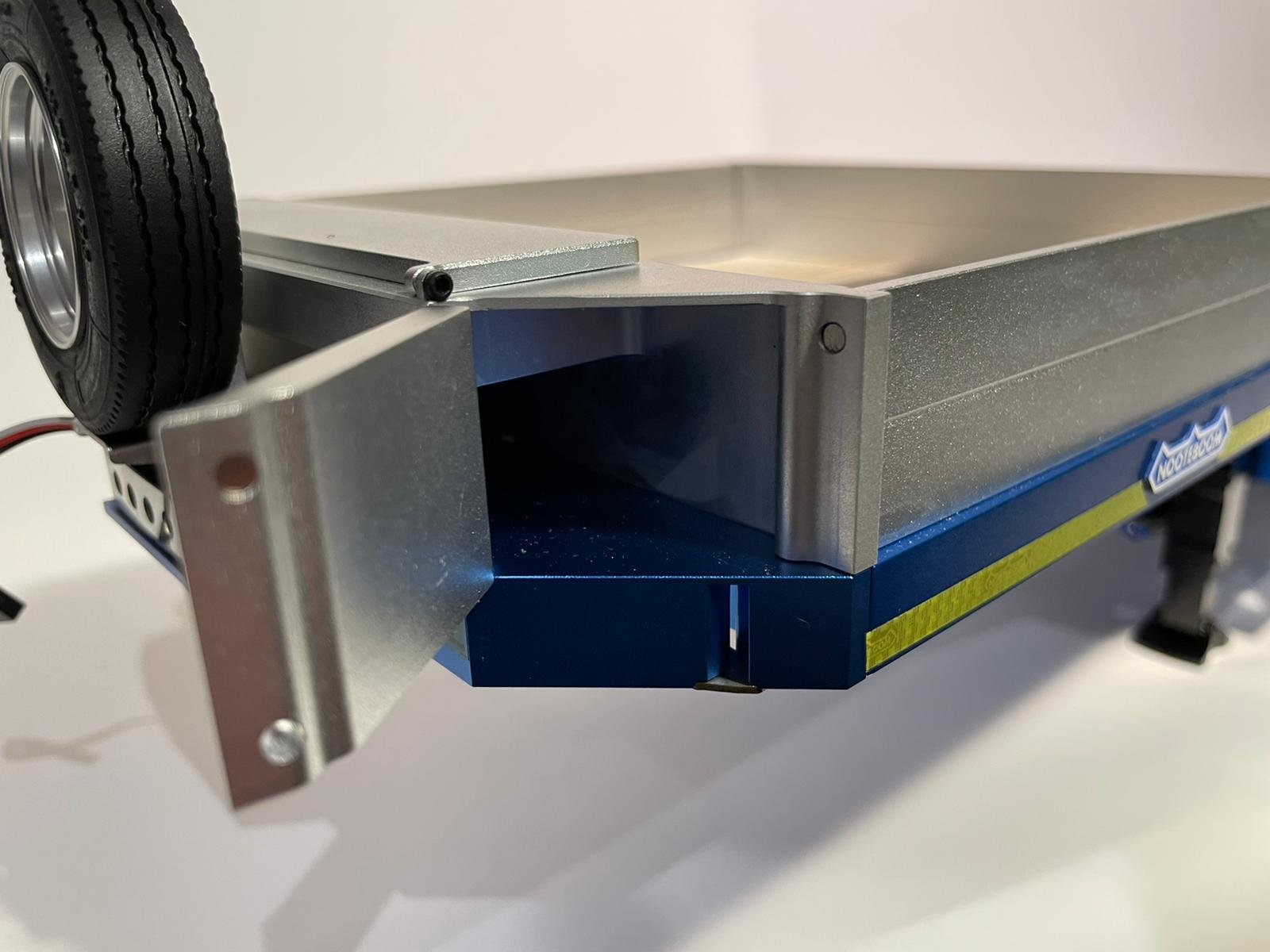

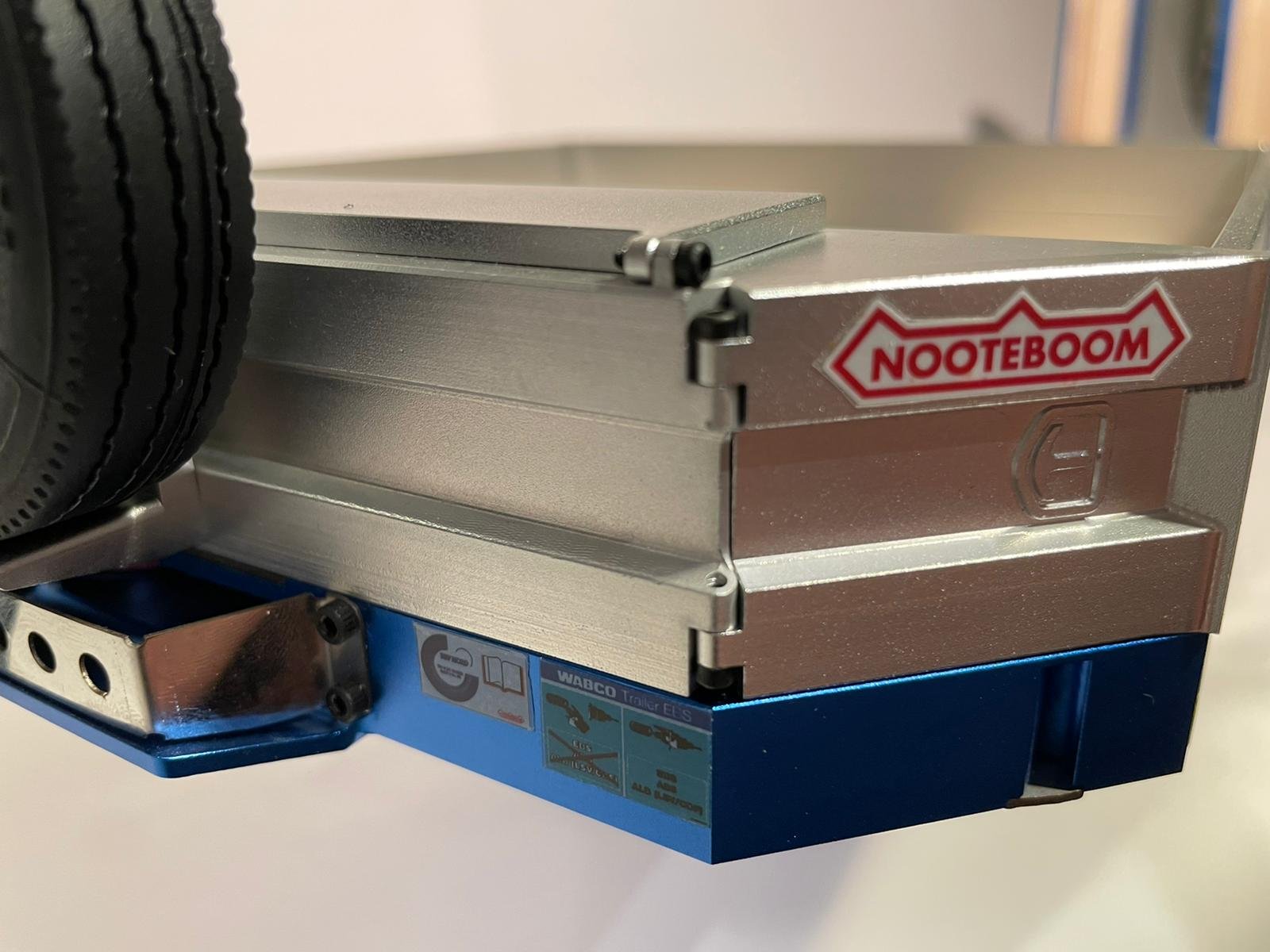

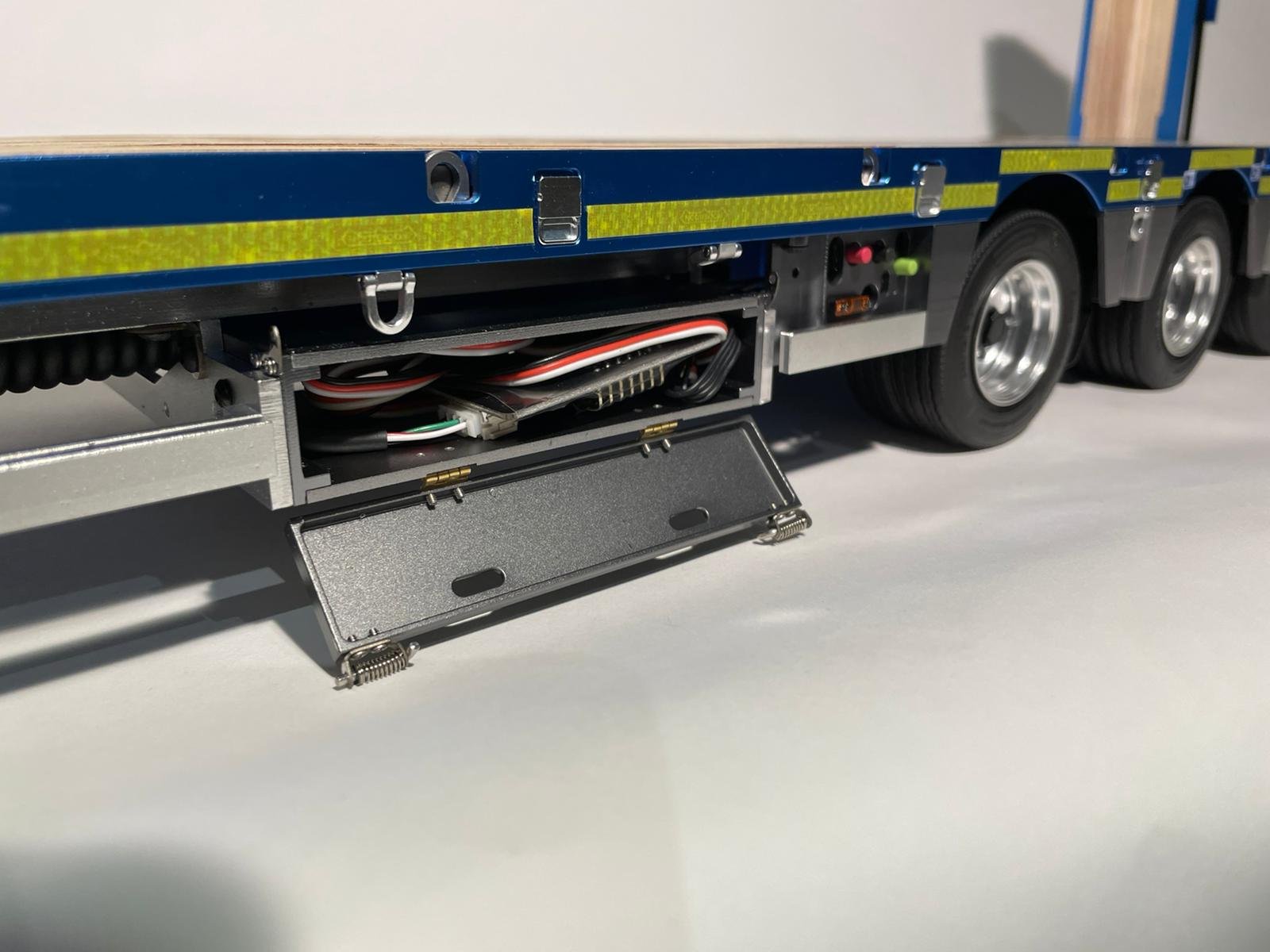

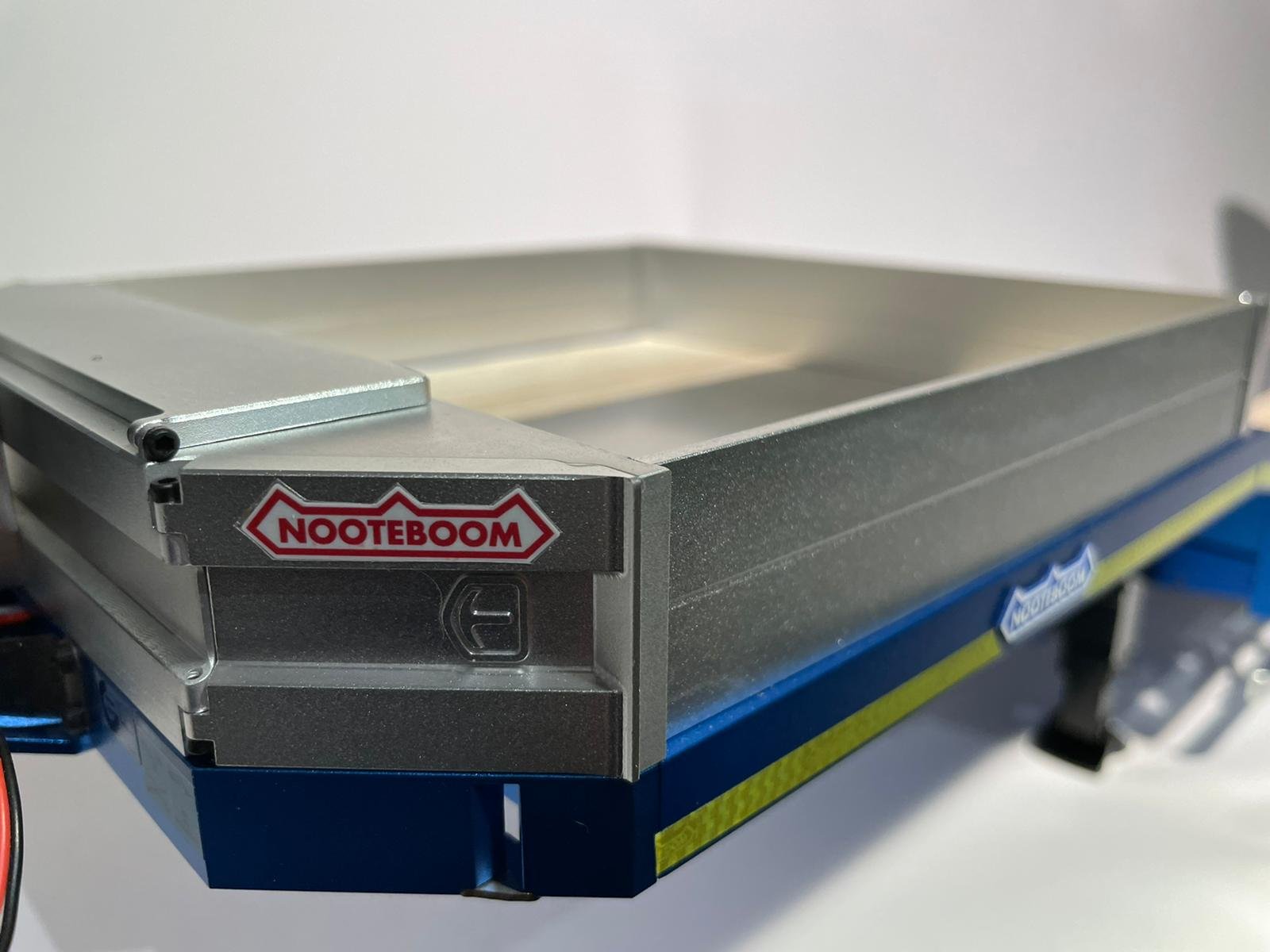

To complete the model, the Nooxion Nooteboom OSDS-48-03 semi low loader is equipped with storage and toolboxes, lashing rings and of course the official Nooteboom logos. To complete the model, even the instruction labels and the other markings have been made for this the trailer.
The Nooteboom trailer has the following sizes;
Gooseneck length: 35,2 cm
Plate length: 63,8 cm
Tail plates length: 29 cm
Total Length Nooteboom Trailer 99 cm, extracted 40 cm

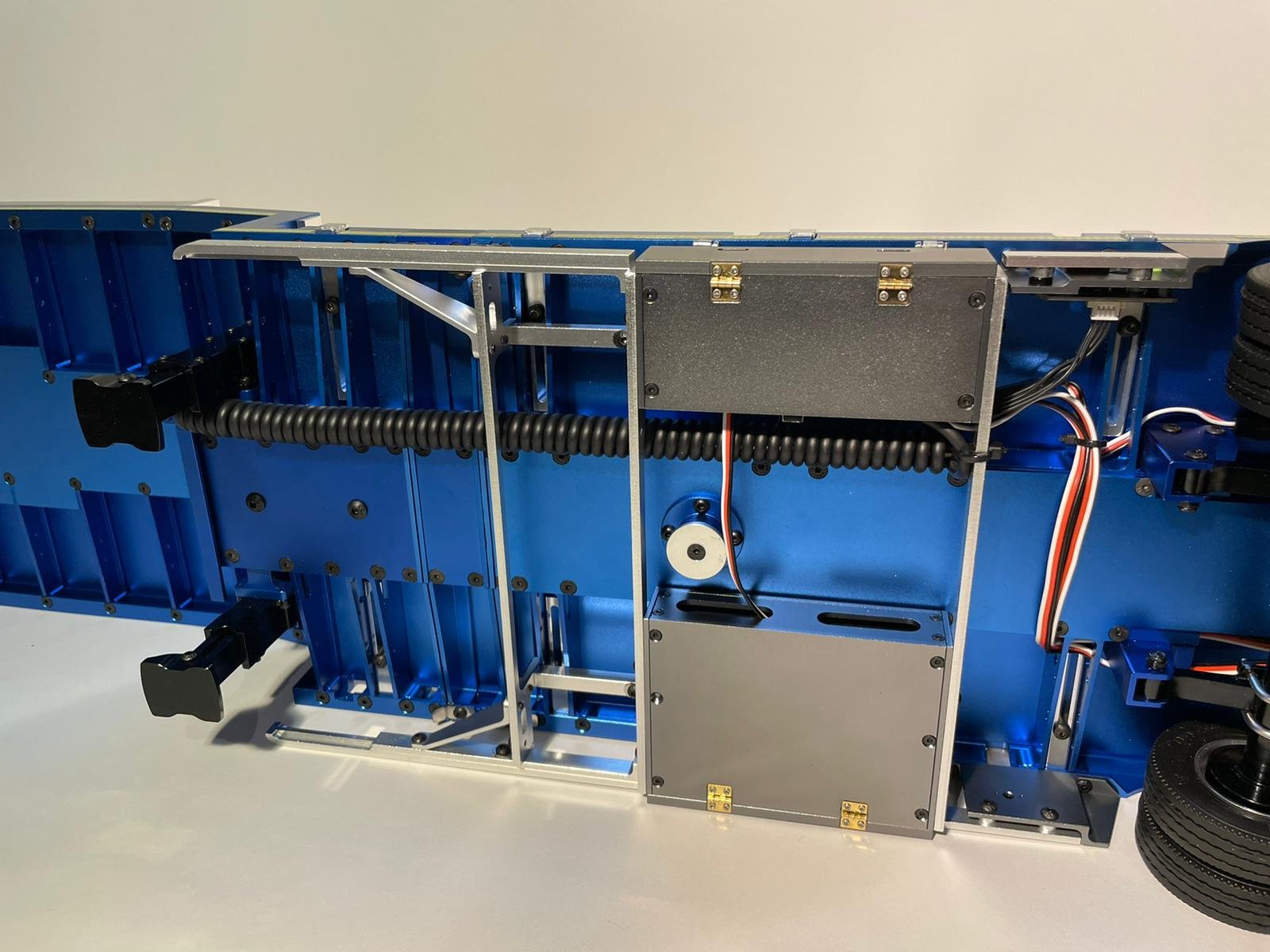

All Servos and Motors needed for movement.
8x circuit boards with safety stop control for ramps.
Lights including rear LEDs with resistors
Battery 6V 2500mHa
Light control unit (Like Servonaut for example)
Hand-made Nooteboom 1:14
The Nooteboom 1:14 is a hand-made realistic precision piece of art. With 3 axles and the last axle is steering you can extract your 3 axle Nooteboom trailer length. The Nooxion 3 axle Nooteboom 1:14 trailer fit with all Tamiya truck models.
